Integration of User-Management-Service to extend default User

bastian-frosted-drift · April 19, 2024, 1:49pm

Hi there,

In my A12 Application, i am trying to integrate User-Management. My goal is to extend the default User, stored on keycloak, with an additional property that is stored in my own Database and synchronised with keycloak. The User-Management-Service should be embedded in my existing Data Service (not standalone).
I was trying to follow the documentation (geta12 - user management) to achieve my goal but so far i am unable to get my POC to work.

Here is what i have done so far:

Added uaa-user-management-user to my gradle dependencies
Created a custom User POJO that extends ExtendedUser and offers one additional String property called customProp
Added uaa-user-management-service to my gradle dependencies
Created a custom User-Extension DM that has the rootGroup extend and just one field (String) called customProp
Added role userManagementAdmin with the default access rights
Adjused/Added the following application properties:

application property	Change
mgmtp.a12.dataservices.initialization.import.models.path	Added models from user-management-service (classpath:core/models)
mgmtp.a12.uaa.authorization.child-authorization-definitions	Added user-management authorization definitions (classpath:core/user-management-authorization.json)
mgmtp.a12.uaa.user-management.idp.url	Set to local keycloak address (currently on host “localhost” for development: http://localhost:8089)
mgmtp.a12.uaa.user-management.idp.realm-name	Set to the existing Realm name that is already used for all users
mgmtp.a12.uaa.user-management.idp.technical.username	Set to default value “keycloak_usermanagement_technical”
mgmtp.a12.uaa.user-management.um.technical.username	Set to a test-value
mgmtp.a12.uaa.user-management.um.technical.password	Set to a test-value
mgmtp.a12.uaa.user-management.um.extension-model-name	Set to the name of the custom User-Extension DM

The result of my changes is that the server starts up successfully as usual, the additional models are imported correctly but besides that, nothing happens. I can’t find any users in my DS DB, nor do i get any server-logs about issues.

My questions:

Am i missing steps or properties that i have not yet set?
Do I need to also add the “User Management Keycloak Extension” to enable the synchronisation?
Where am i supposed to find the Users in my dataservices DB once the setup is correct? (in table “documents”?)
When is the synchronisation triggered for the first time? Is it automatically synchronised on startup and right after, i should be able to find the users in my DB?

General Information:

I am using A12 components in version for 2023.06-ext4.

I’d be very happy to receive some hints in the right direction.

long-narrow-bloom · April 23, 2024, 10:40am

Hello,

Before I assist you further, I have a few questions:

Following the configuration and launch of your application, did you attempt to create a document using the UM module? If so, what was the outcome? Were there any error logs on the server or within the Keycloak instance?

bastian-frosted-drift · April 23, 2024, 11:07am

Thanks for getting back to me.
I do not intend to use the user-management-module and therefore did not attempt to create a document using the module. Unfortunately i can’t provide the information you are looking for.

bastian-frosted-drift · April 23, 2024, 2:50pm

For a test-setup I tried creating a user using the endpoint /api/user/create. In this operation i get an error at the UserEventListener, specifically in afterCreateUser at the creation of the idpService User.
The error is thrown when a new Keycloak is built in getIDPClientInstance of BaseKeycloakService.java but i can’t seem to find out if or where I am missing an application property if that’s the issue.

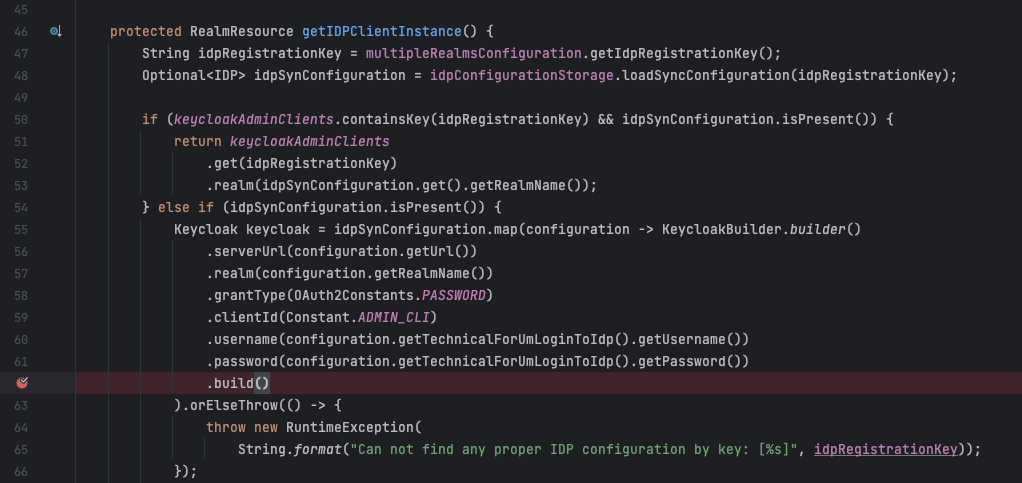

Error is thrown at line 62 of BaseKeycloakService.java:
