Incorrect Date Display in Tree Engine with Two Date Fields

Modeling
, ,
1

Hi,

I’ve observed an incorrect date display in the Tree Engine in my own workspace, but couldn’t understand the cause. After setting up a dedicated test workspace, I can consistently reproduce the same issue. I’m wondering if this is a modeling mistake on my part, or potentially a bug in the engine.

Setup:

  • There is an n-m relationship between Location and Employee with link fields StartDate and EndDate.
  • In the (SelectedItems) Overview Engine, both dates are shown correctly.
  • In the Tree Engine, however, both StartDate and EndDate are displayed with the same value, even though the uploaded test document contains two distinct dates.
  • I verified that the values in the database and in the server response are correct – it’s only the UI display in the Tree Engine that’s wrong.

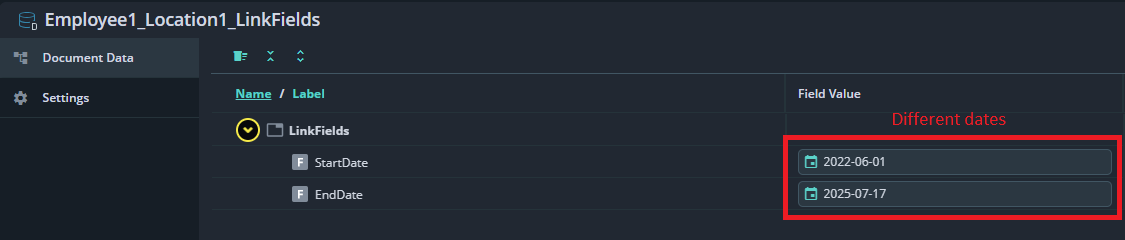

LinkFields-Date-values

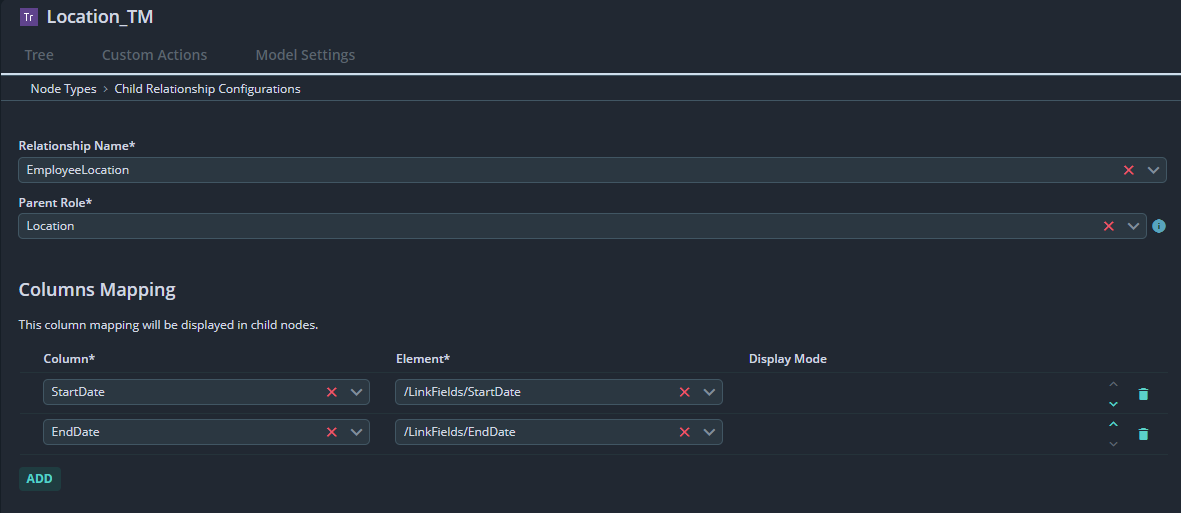

TreeModel-Config

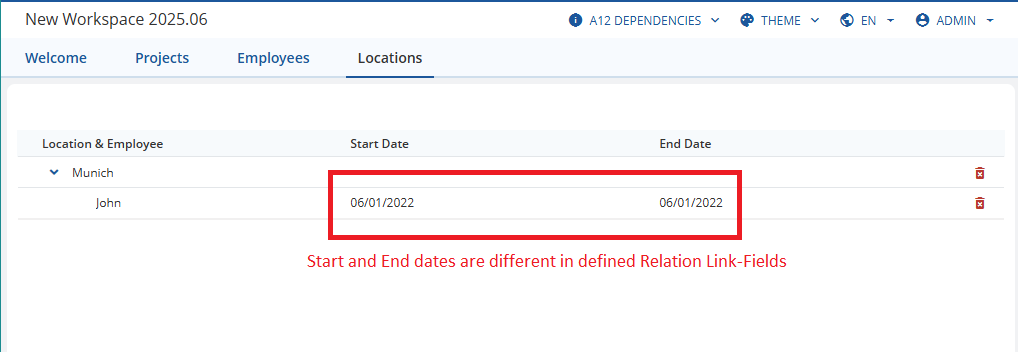

Tree_Dates-wrong.output

I’ve created a test workspace but can’t upload it because it’s a zip file. I’d appreciate it if someone experienced with this topic could take a look and let me know whether this is a modeling issue or a bug, and how to resolve it. I can send the zip file via WebEx.

Thanks in advance!

Foued

2

Hi @foued-soft-queue
I’ve just adapted the advanced workspace and I can reproduce this issue. I’ll create a bug and post the ticket number here shortly.

Thanks for highlighting this issue :+1:

3

I created A12-17587 and added you as a watcher. Please feel free to link your project as an interested project.

4

Update: This issue has been fixed in 2025.06-ext1.
