Long enumeration labels across multiple lines in form model

Engines Form Engine
1

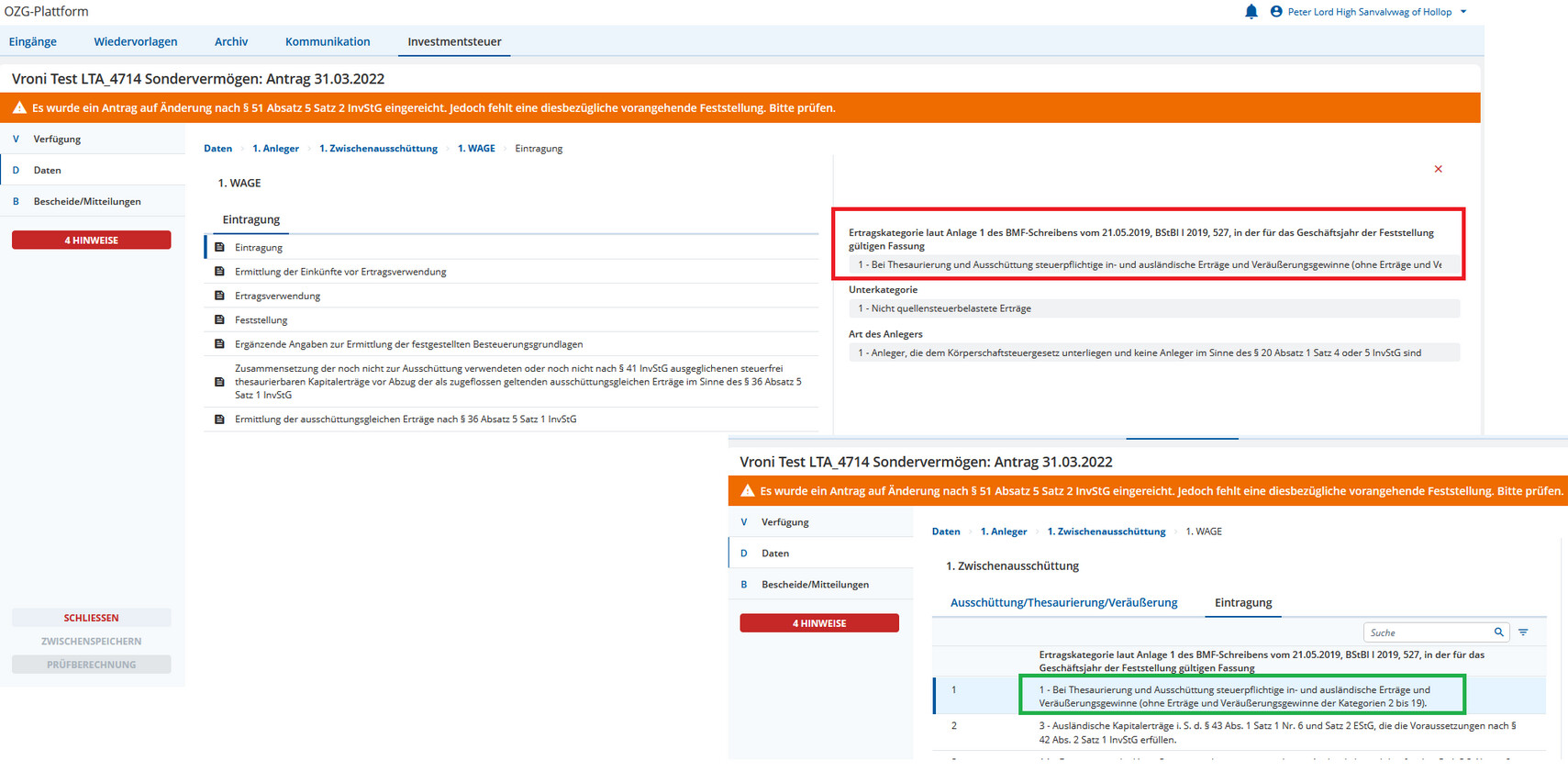

A long label from an enumeration is broken into mutiple lines in an overview model (bottom, green box), but in a regular form model, that same label does not span multiple lines and is cut off at the end. Is there a solution to make the label in the red box apper as it does in the green box?

grafik
grafik1709×853 303 KB

2

reading that i wonder if understand correctly, so:

isn’t the green box just around the value of a field with representation text cell (or however this is named in overview engine) and the red box around a control with exposition text line (so text line should not break at all).

if so the exposition Area should fix your problem.

3

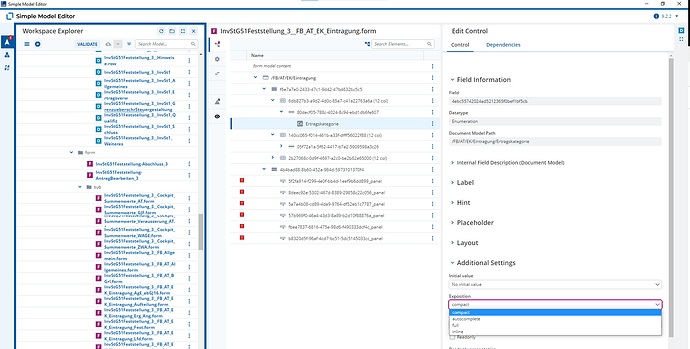

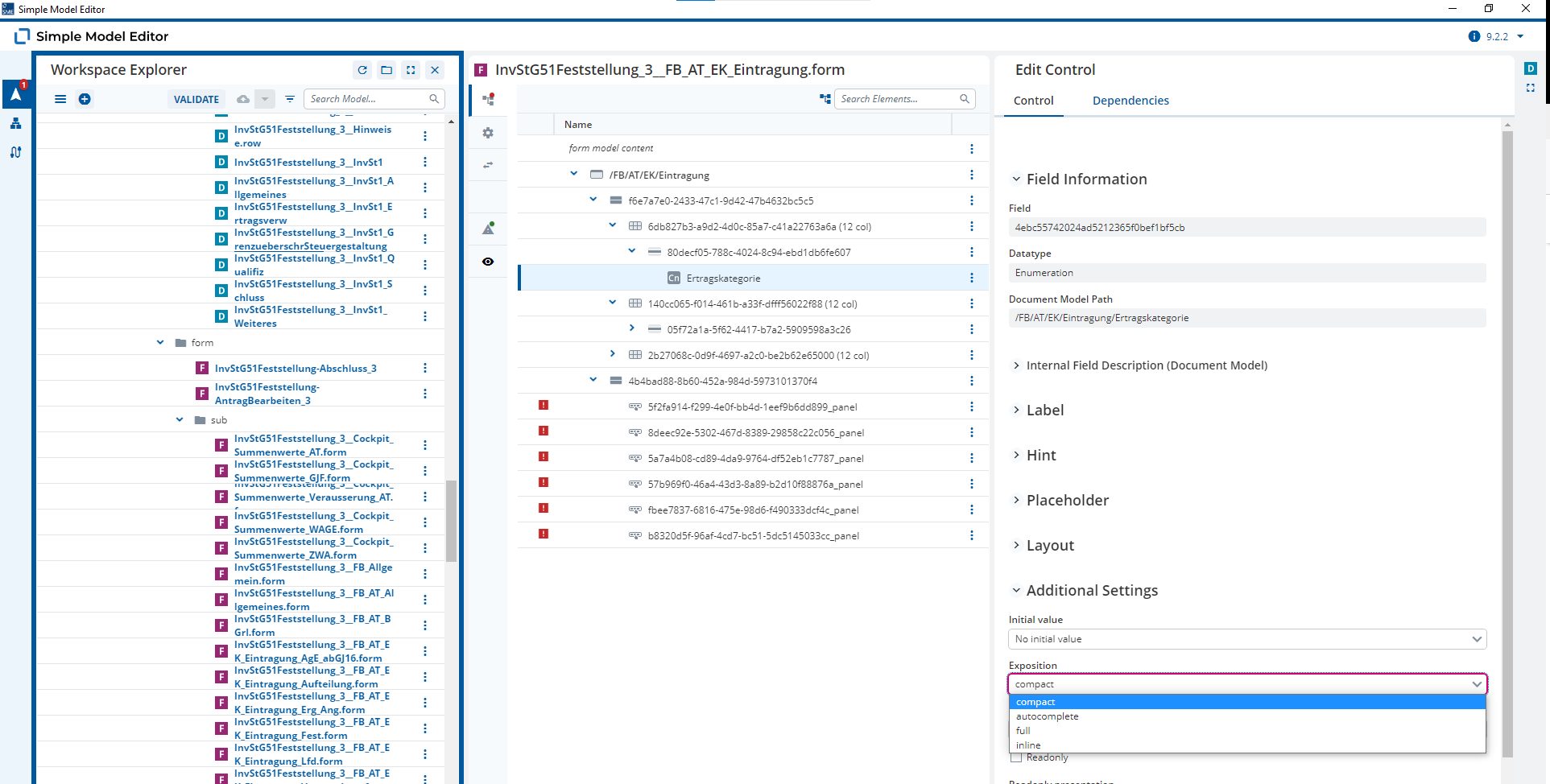

Unfortunately, this does not work.

The referred field in the red box is an enumeration and so the exposition options do not include “Area”.

grafik
grafik1925×974 147 KB

4

thanks for clarification :slight_smile:

one idea i have: since it displayed as readonly input is it an option for you to display it as Readonly presentation text output?

otherwise i can only imagine to hook into the widgetmap and change the widget which is used or the props dependent on the field path.

5

Thank you for that. That solved my issue. I only needed to add a helper class of light grey background in order to make it visually identical to the default read-only view of an enumeration.

Thanks!
